SMB Series(DO-214AA)

SMB Series(DO-214AA)
Part Number Power(W)
All
600
Vrwm(V)
All
5
6
6.5
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
180
190
200
210
220
250
300
350
400
440
Vbr(V)
All
6.4
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
201
211
224
233
246
279
335
391
447
492
Vc(V)
All
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
292
307
324
337
356
405
486
567
648
713
Ipp(A)
All
0.8
0.9
1.1
1.3
1.5
1.7
1.8
1.9
2
2.1
2.2
2.3
2.5
2.9
3.1
3.4
3.7
4.1
4.4
4.8
5
5.3
5.8
6.2
6.4
6.9
7.3
7.8
8.3
8.7
9.3
10.4
11.3
12.4
13.2
14.3
15.4
16.9
18.6
20.6
21.8
23.1
24.6
25.9
27.9
30.2
33
35.3
39
41.7
44.1
46.5
50
53.6
58.3
65.2
Ir@25°C(μA)
All
1
2
5
10
35
50
100
150
300
Package
All
SMB

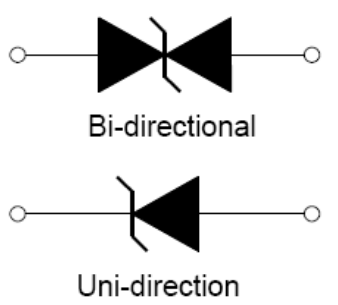

Inner Diagram Data sheet
SMBJ5.0A SMBJ5.0CA 600 5 6.4 9.2 65.2 300 SMB SMBJ5.0A SMBJ5.0CA
SMBJ5.0A SMBJ5.0CA
SMBJ6.0A SMBJ6.0CA 600 6 6.67 10.3 58.3 150 SMB SMBJ6.0A SMBJ6.0CA
SMBJ6.0A SMBJ6.0CA
SMBJ6.5A SMBJ6.5CA 600 6.5 7.22 11.2 53.6 100 SMB SMBJ6.5A SMBJ6.5CA
SMBJ6.5A SMBJ6.5CA
SMBJ7.0A SMBJ7.0CA 600 7 7.78 12 50 50 SMB SMBJ7.0A SMBJ7.0CA
SMBJ7.0A SMBJ7.0CA
SMBJ7.5A SMBJ7.5CA 600 7.5 8.33 12.9 46.5 50 SMB SMBJ7.5A SMBJ7.5CA
SMBJ7.5A SMBJ7.5CA
SMBJ8.0A SMBJ8.0CA 600 8 8.89 13.6 44.1 35 SMB SMBJ8.0A SMBJ8.0CA
SMBJ8.0A SMBJ8.0CA
SMBJ8.5A SMBJ8.5CA 600 8.5 9.44 14.4 41.7 10 SMB SMBJ8.5A SMBJ8.5CA
SMBJ8.5A SMBJ8.5CA
SMBJ9.0A SMBJ9.0CA 600 9 10 15.4 39 5 SMB SMBJ9.0A SMBJ9.0CA
SMBJ9.0A SMBJ9.0CA
SMBJ10A SMBJ10CA 600 10 11.1 17 35.3 2 SMB SMBJ10A SMBJ10CA
SMBJ10A SMBJ10CA
SMBJ11A SMBJ11CA 600 11 12.2 18.2 33 1 SMB SMBJ11A SMBJ11CA
SMBJ11A SMBJ11CA
SMBJ12A SMBJ12CA 600 12 13.3 19.9 30.2 1 SMB SMBJ12A SMBJ12CA
SMBJ12A SMBJ12CA
SMBJ13A SMBJ13CA 600 13 14.4 21.5 27.9 1 SMB SMBJ13A SMBJ13CA
SMBJ13A SMBJ13CA
SMBJ14A SMBJ14CA 600 14 15.6 23.2 25.9 1 SMB SMBJ14A SMBJ14CA
SMBJ14A SMBJ14CA
SMBJ15A SMBJ15CA 600 15 16.7 24.4 24.6 1 SMB SMBJ15A SMBJ15CA
SMBJ15A SMBJ15CA
SMBJ16A SMBJ16CA 600 16 17.8 26 23.1 1 SMB SMBJ16A SMBJ16CA
SMBJ16A SMBJ16CA
SMBJ17A SMBJ17CA 600 17 18.9 27.6 21.8 1 SMB SMBJ17A SMBJ17CA
SMBJ17A SMBJ17CA
SMBJ18A SMBJ18CA 600 18 20 29.2 20.6 1 SMB SMBJ18A SMBJ18CA
SMBJ18A SMBJ18CA
SMBJ20A SMBJ20CA 600 20 22.2 32.4 18.6 1 SMB SMBJ20A SMBJ20CA
SMBJ20A SMBJ20CA
SMBJ22A SMBJ22CA 600 22 24.4 35.5 16.9 1 SMB SMBJ22A SMBJ22CA
SMBJ22A SMBJ22CA
SMBJ24A SMBJ24CA 600 24 26.7 38.9 15.4 1 SMB SMBJ24A SMBJ24CA
SMBJ24A SMBJ24CA
SMBJ26A SMBJ26CA 600 26 28.9 42.1 14.3 1 SMB SMBJ26A SMBJ26CA
SMBJ26A SMBJ26CA
SMBJ28A SMBJ28CA 600 28 31.1 45.4 13.2 1 SMB SMBJ28A SMBJ28CA
SMBJ28A SMBJ28CA
SMBJ30A SMBJ30CA 600 30 33.3 48.4 12.4 1 SMB SMBJ30A SMBJ30CA
SMBJ30A SMBJ30CA
SMBJ33A SMBJ33CA 600 33 36.7 53.3 11.3 1 SMB SMBJ33A SMBJ33CA
SMBJ33A SMBJ33CA
SMBJ36A SMBJ36CA 600 36 40 58.1 10.4 1 SMB SMBJ36A SMBJ36CA
SMBJ36A SMBJ36CA
SMBJ40A SMBJ40CA 600 40 44.4 64.5 9.3 1 SMB SMBJ40A SMBJ40CA
SMBJ40A SMBJ40CA
SMBJ43A SMBJ43CA 600 43 47.8 69.4 8.7 1 SMB SMBJ43A SMBJ43CA
SMBJ43A SMBJ43CA
SMBJ45A SMBJ45CA 600 45 50 72.7 8.3 1 SMB SMBJ45A SMBJ45CA
SMBJ45A SMBJ45CA
SMBJ48A SMBJ48CA 600 48 53.3 77.4 7.8 1 SMB SMBJ48A SMBJ48CA
SMBJ48A SMBJ48CA
