SMB Series(DO-214AA)

SMB Series(DO-214AA)
Part Number Vdrm(V)
All
6
15
25
58
65
75
90
120
140
170
180
190
220
275
320
Idrm(μA)
All
-
5
Vs(V)
All
15
25
32
40
77
88
98
130
160
180
220
260
300
350
400
Ih(mA)
All
50
150
Is(mA)
All
800
It(A)
All
2.2
Vt(V)
All
4
Cj(pF)
All
15
20
25
30
35
40
45
50
55
100
Package
All
SMB

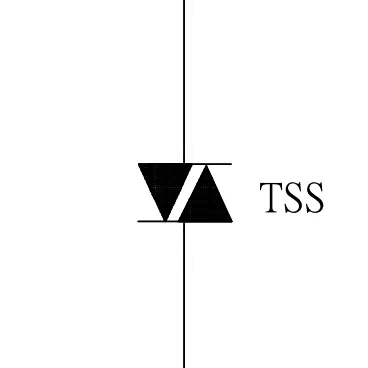

Inner Diagram Data sheet
P0060SA 6 - 25 50 800 2.2 4 25 SMB P0060SA
P0060SA
P0080SA 6 - 25 50 800 2.2 4 25 SMB P0080SA
P0080SA
P0220SA 15 - 32 50 800 2.2 4 25 SMB P0220SA
P0220SA
P0300SA 25 - 40 50 800 2.2 4 15 SMB P0300SA
P0300SA
P0640SA 58 - 77 150 800 2.2 4 40 SMB P0640SA
P0640SA
P0720SA 65 - 88 150 800 2.2 4 35 SMB P0720SA
P0720SA
P0900SA 75 - 98 150 800 2.2 4 25 SMB P0900SA
P0900SA
P1100SA 90 - 130 150 800 2.2 4 30 SMB P1100SA
P1100SA
P1300SA 120 - 160 150 800 2.2 4 25 SMB P1300SA
P1300SA
P1500SA 140 - 180 150 800 2.2 4 25 SMB P1500SA
P1500SA
P1800SA 170 - 220 150 800 2.2 4 25 SMB P1800SA
P1800SA
P2300SA 190 - 260 150 800 2.2 4 30 SMB P2300SA
P2300SA
P2600SA 220 - 300 150 800 2.2 4 25 SMB P2600SA
P2600SA
P3100SA 275 - 350 150 800 2.2 4 20 SMB P3100SA
P3100SA
P3500SA 320 - 400 150 800 2.2 4 20 SMB P3500SA
P3500SA
P0060SB 6 - 15 50 800 2.2 4 25 SMB P0060SB
P0060SB
P0080SB 6 - 25 50 800 2.2 4 25 SMB P0080SB
P0080SB
P0220SB 15 - 32 50 800 2.2 4 25 SMB P0220SB
P0220SB
P0300SB 25 - 40 50 800 2.2 4 15 SMB P0300SB
P0300SB
P0640SB 58 - 77 150 800 2.2 4 40 SMB P0640SB
P0640SB
P0720SB 65 - 88 150 800 2.2 4 35 SMB P0720SB
P0720SB
P0900SB 75 - 98 150 800 2.2 4 35 SMB P0900SB
P0900SB
P1100SB 90 - 130 150 800 2.2 4 30 SMB P1100SB
P1100SB
P1300SB 120 - 160 150 800 2.2 4 25 SMB P1300SB
P1300SB
P1500SB 140 - 180 150 800 2.2 4 25 SMB P1500SB
P1500SB
P1800SB 170 - 220 150 800 2.2 4 25 SMB P1800SB
P1800SB
P2300SB 190 - 260 150 800 2.2 4 20 SMB P2300SB
P2300SB
P2600SB 220 - 300 150 800 2.2 4 25 SMB P2600SB
P2600SB
P3100SB 275 - 350 150 800 2.2 4 20 SMB P3100SB
P3100SB
P3500SB 320 - 400 150 800 2.2 4 20 SMB P3500SB
P3500SB
