NチャネルMOSFET
NチャネルMOSFET
Part Number |
Package
|
Vdss Min(V) Drain-Source voltage
|
Drain Current ID(A)25℃
|
Vgs(V)
|
Vth Typ
|
Ron(10V) (mΩ)Typ
|
Ron(10V) (mΩ) Max
|
Ron(4.5V) (mΩ)Typ
|
Ron(4.5V) (mΩ)Max
|

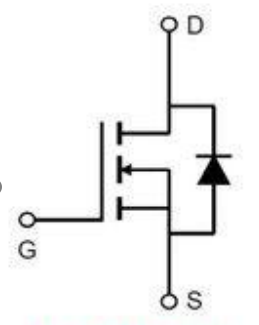

Inner Diagram | Data sheet |
---|---|---|---|---|---|---|---|---|---|---|---|
LM3043K | DFN1006-3 | 20 | 0.6 | 8 | 0.35..1.0 | - | - | 250 | 400 | ||
2N7002 (ESD) | DFN1006-3 | 60 | 0.35 | 20 | 1.7 | 2200 | 2800 | 2500 | 3200 | ||
LMQ30N03A | DFN3.3X3.3 | 30 | 30 | 20 | 1.5 | 8.5 | 11 | 10.5 | 15 | ||
LM3D60N03 | DFN3.3X3.3 | 30 | 60 | 20 | 1..2.5 | 7 | 8.5 | 10 | 13 | ||
LM3D70N03 | DFN3.3X3.3 | 30 | 70 | 20 | 1.6 | 3.5 | 5.5 | 6.5 | 8.5 | ||
LMQ20N04A | DFN3.3X3.3 | 40 | 20 | 20 | 1.5 | 11 | 14 | 14.3 | 18.5 | ||
LM3D60N04 | DFN3.3X3.3 | 40 | 60 | 20 | 1.5 | 12.5 | 15.5 | 14.5 | 20 | ||
LM3D80N03 | DFN3.3X3.3 | 30 | 80 | 20 | 1.5 | 3.3 | 4 | 5.5 | 6.5 | ||
LM3D40N10 | DFN3.3X3.3 | 100 | 40 | 20 | 1.5 | 14 | 25 | 18 | 30 | ||
LMP3065QU | DFN3.3X3.3-8 | 30 | 65 | 20 | 1.5 | 1.9 | 2.3 | 3 | 3.6 | ||
LMP3065BQU | DFN3.3X3.3-8 | 30 | 65 | 12 | 0.45..1 | 1.75 | 1.95 | 2 | 2.3 | ||
LCE3025Q | DFN3X3EP | 30 | 25 | 20 | 1.6 | 7 | 10 | 10.5 | 14 | ||
LCE3035Q | DFN3X3EP | 30 | 35 | 20 | 1.6 | 5.9 | 7 | 8.9 | 12 | ||
LM90N02NF | DFN5X6-8 | 20 | 90 | 12 | 0.68 | 1.6 | 2 | 1.9 | 2.5 | ||
LMP3045GU | DFN5X6-8 | 30 | 45 | 20 | 1.5 | 5.8 | 6.4 | 8 | 10 | ||
LM5D60N03 | DFN5X6-8 | 30 | 60 | 20 | 1.5 | 6.5 | 8.5 | 11 | 14 | ||
LM5D70N03 | DFN5X6-8 | 30 | 70 | 20 | 1.6 | 3.5 | 5.5 | 6.5 | 8.5 | ||
LCEP3090GU | DFN5X6-8 | 30 | 90 | 20 | 1.5 | 2 | 2.3 | 3.1 | 3.6 | ||
LM5D120N03 | DFN5X6-8 | 30 | 120 | 20 | 1.5 | 1.5 | 2.4 | 2.5 | 4.5 | ||
LM5D150N03 | DFN5X6-8 | 30 | 150 | 20 | 1.6 | 1.4 | 2 | 2.3 | 3.2 | ||
LM5D60N04 | DFN5X6-8 | 40 | 60 | 20 | 1.6 | 10.5 | 13.5 | 13.5 | 16.5 | ||
LCE4090G | DFN5X6-8 | 40 | 90 | 20 | 1.9 | 3.2 | 4 | 5.5 | 7 | ||
LCEP4090GU | DFN5X6-8 | 40 | 90 | 20 | 1.5 | 2.2 | 2.5 | 3.3 | 3.8 | ||
LCEP40T11G | DFN5X6-8 | 40 | 110 | 20 | 1.7 | 2.4 | 2.8 | 3.3 | 3.9 | ||
LM5D120N04 | DFN5X6-8 | 40 | 120 | 20 | 1.6 | 1.4 | 1.8 | 2 | 2.6 | ||
LM5D140N04 | DFN5X6-8 | 40 | 140 | 20 | 1.7 | 1.6 | 2.2 | 2.3 | 3.5 | ||
LM4902GU | DFN5X6-8 | 40 | 160 | 20 | 1.6 | 1.5 | 1.9 | 1.8 | 2.4 | ||
LCE6045G | DFN5X6-8 | 60 | 45 | 20 | 1.8 | 10 | 13 | 13 | 17 | ||
LMG48G08A | DFN5X6-8 | 80 | 64 | 20 | 1.8 | 6.2 | 8 | 7.8 | 10 | ||
LCEP6060GU | DFN5X6-8 | 60 | 60 | 20 | 3 | 5.6 | 6.2 | - | - |
