P6SMB Series(DO-214AA)

P6SMB Series(DO-214AA)
Part Number Power(W)
All
600
Vrwm(V)
All
6.4
7.02
7.78
8.55
9.4
10.2
11.1
12.8
13.6
15.3
17.1
18.8
20.5
23.1
25.6
28.2
30.8
33.3
36.8
40.2
43.6
47.8
53
58.1
64.1
70.1
77.8
85.5
94
102
111
128
136
145
154
171
185
214
256
300
342
376
408
434
459
477
495
512
Vbr(V)
All
7.13
7.79
8.65
9.5
10.5
11.4
12.4
14.3
15.2
17.1
19
20.9
22.8
25.7
28.5
31.4
34.2
37.1
40.9
44.7
48.5
53.2
58.9
64.6
71.3
77.9
86.5
95
105
114
124
143
152
162
171
190
209
237
285
332
380
418
456
485
503.5
513
522.5
570
Vc(V)
All
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22
25.5
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77
85
92
103
113
125
137
152
165
179
207
219
234
246
274
328
344
414
482
548
602
658
698
725
740
760
828
Ipp(A)
All
0.75
0.8
0.9
1
1.1
1.3
1.5
1.8
1.9
2.2
2.5
2.6
2.8
2.9
3.4
3.7
4
4.5
4.9
5.4
5.9
6.6
7.2
7.9
8.7
9.4
10.3
11.3
12.2
13.3
14.7
16.3
18.4
19.9
22
24.2
27.1
28.8
33.5
36.5
39.1
42.1
45.5
50.4
54
Ir@25°C(μA)
All
5
10
50
200
500
1000
Package
All
DO-214AA(SMB)

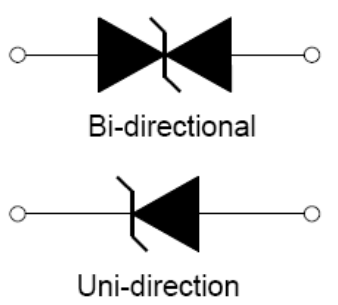

Inner Diagram Data sheet
P6SMB7.5A P6SMB7.5CA 600 6.4 7.13 11.3 54 1000 DO-214AA(SMB) P6SMB7.5A P6SMB7.5CA
P6SMB7.5A P6SMB7.5CA
P6SMB8.2A P6SMB8.2CA 600 7.02 7.79 12.1 50.4 500 DO-214AA(SMB) P6SMB8.2A P6SMB8.2CA
P6SMB8.2A P6SMB8.2CA
P6SMB9.1A P6SMB9.1CA 600 7.78 8.65 13.4 45.5 200 DO-214AA(SMB) P6SMB9.1A P6SMB9.1CA
P6SMB9.1A P6SMB9.1CA
P6SMB10A P6SMB10CA 600 8.55 9.5 14.5 42.1 50 DO-214AA(SMB) P6SMB10A P6SMB10CA
P6SMB10A P6SMB10CA
P6SMB11A P6SMB11CA 600 9.4 10.5 15.6 39.1 10 DO-214AA(SMB) P6SMB11A P6SMB11CA
P6SMB11A P6SMB11CA
P6SMB12A P6SMB12CA 600 10.2 11.4 16.7 36.5 5 DO-214AA(SMB) P6SMB12A P6SMB12CA
P6SMB12A P6SMB12CA
P6SMB13A P6SMB13CA 600 11.1 12.4 18.2 33.5 5 DO-214AA(SMB) P6SMB13A P6SMB13CA
P6SMB13A P6SMB13CA
P6SMB15A P6SMB15CA 600 12.8 14.3 21.2 28.8 5 DO-214AA(SMB) P6SMB15A P6SMB15CA
P6SMB15A P6SMB15CA
P6SMB16A P6SMB16CA 600 13.6 15.2 22 27.1 5 DO-214AA(SMB) P6SMB16A P6SMB16CA
P6SMB16A P6SMB16CA
P6SMB18A P6SMB18CA 600 15.3 17.1 25.5 24.2 5 DO-214AA(SMB) P6SMB18A P6SMB18CA
P6SMB18A P6SMB18CA
P6SMB20A P6SMB20CA 600 17.1 19 27.7 22 5 DO-214AA(SMB) P6SMB20A P6SMB20CA
P6SMB20A P6SMB20CA
P6SMB22A P6SMB22CA 600 18.8 20.9 30.6 19.9 5 DO-214AA(SMB) P6SMB22A P6SMB22CA
P6SMB22A P6SMB22CA
P6SMB24A P6SMB24CA 600 20.5 22.8 33.2 18.4 5 DO-214AA(SMB) P6SMB24A P6SMB24CA
P6SMB24A P6SMB24CA
P6SMB27A P6SMB27CA 600 23.1 25.7 37.5 16.3 5 DO-214AA(SMB) P6SMB27A P6SMB27CA
P6SMB27A P6SMB27CA
P6SMB30A P6SMB30CA 600 25.6 28.5 41.4 14.7 5 DO-214AA(SMB) P6SMB30A P6SMB30CA
P6SMB30A P6SMB30CA
P6SMB33A P6SMB33CA 600 28.2 31.4 45.7 13.3 5 DO-214AA(SMB) P6SMB33A P6SMB33CA
P6SMB33A P6SMB33CA
P6SMB36A P6SMB36CA 600 30.8 34.2 49.9 12.2 5 DO-214AA(SMB) P6SMB36A P6SMB36CA
P6SMB36A P6SMB36CA
P6SMB39A P6SMB39CA 600 33.3 37.1 53.9 11.3 5 DO-214AA(SMB) P6SMB39A P6SMB39CA
P6SMB39A P6SMB39CA
P6SMB43A P6SMB43CA 600 36.8 40.9 59.3 10.3 5 DO-214AA(SMB) P6SMB43A P6SMB43CA
P6SMB43A P6SMB43CA
P6SMB47A P6SMB47CA 600 40.2 44.7 64.8 9.4 5 DO-214AA(SMB) P6SMB47A P6SMB47CA
P6SMB47A P6SMB47CA
P6SMB51A P6SMB51CA 600 43.6 48.5 70.1 8.7 5 DO-214AA(SMB) P6SMB51A P6SMB51CA
P6SMB51A P6SMB51CA
P6SMB56A P6SMB56CA 600 47.8 53.2 77 7.9 5 DO-214AA(SMB) P6SMB56A P6SMB56CA
P6SMB56A P6SMB56CA
P6SMB62A P6SMB62CA 600 53 58.9 85 7.2 5 DO-214AA(SMB) P6SMB62A P6SMB62CA
P6SMB62A P6SMB62CA
P6SMB68A P6SMB68CA 600 58.1 64.6 92 6.6 5 DO-214AA(SMB) P6SMB68A P6SMB68CA
P6SMB68A P6SMB68CA
P6SMB75A P6SMB75CA 600 64.1 71.3 103 5.9 5 DO-214AA(SMB) P6SMB75A P6SMB75CA
P6SMB75A P6SMB75CA
P6SMB82A P6SMB82CA 600 70.1 77.9 113 5.4 5 DO-214AA(SMB) P6SMB82A P6SMB82CA
P6SMB82A P6SMB82CA
P6SMB91A P6SMB91CA 600 77.8 86.5 125 4.9 5 DO-214AA(SMB) P6SMB91A P6SMB91CA
P6SMB91A P6SMB91CA
P6SMB100A P6SMB100CA 600 85.5 95 137 4.5 5 DO-214AA(SMB) P6SMB100A P6SMB100CA
P6SMB100A P6SMB100CA
P6SMB110A P6SMB110CA 600 94 105 152 4 5 DO-214AA(SMB) P6SMB110A P6SMB110CA
P6SMB110A P6SMB110CA
P6SMB120A P6SMB120CA 600 102 114 165 3.7 5 DO-214AA(SMB) P6SMB120A P6SMB120CA
P6SMB120A P6SMB120CA
